TRENCHING SYSTEMS
SCP1200/ 1500
Standard Cable Plough 1.2m or 1.5m
Industry standard cable trenching plough
- Tow force: 50Te
- Trench depth: 0 to 1.2m or 1.5m (replaceable share)
- Product diameter: 20mm to 160mm
- Bend radius: 1.5m
- LARS: Drawbar lifting/ towing
- Jetting: 150kW – OPTION
- Repeater passage: Up to 350mm – OPTION
RCP1500
Route Clearing Plough 1500mm
Multi-role boulder clearing and pre-trenching plough
- Tow force: 150Te+
- 3 modes: boulder clearing, pre-trenching, back fill
- Trench depth: 800mm (boulder trench) + 700mm (pre-trench)
- Mould board: 5000mm per side
- Weight: 45Te
- Water depth: <100m
- LARS: Bullet launch

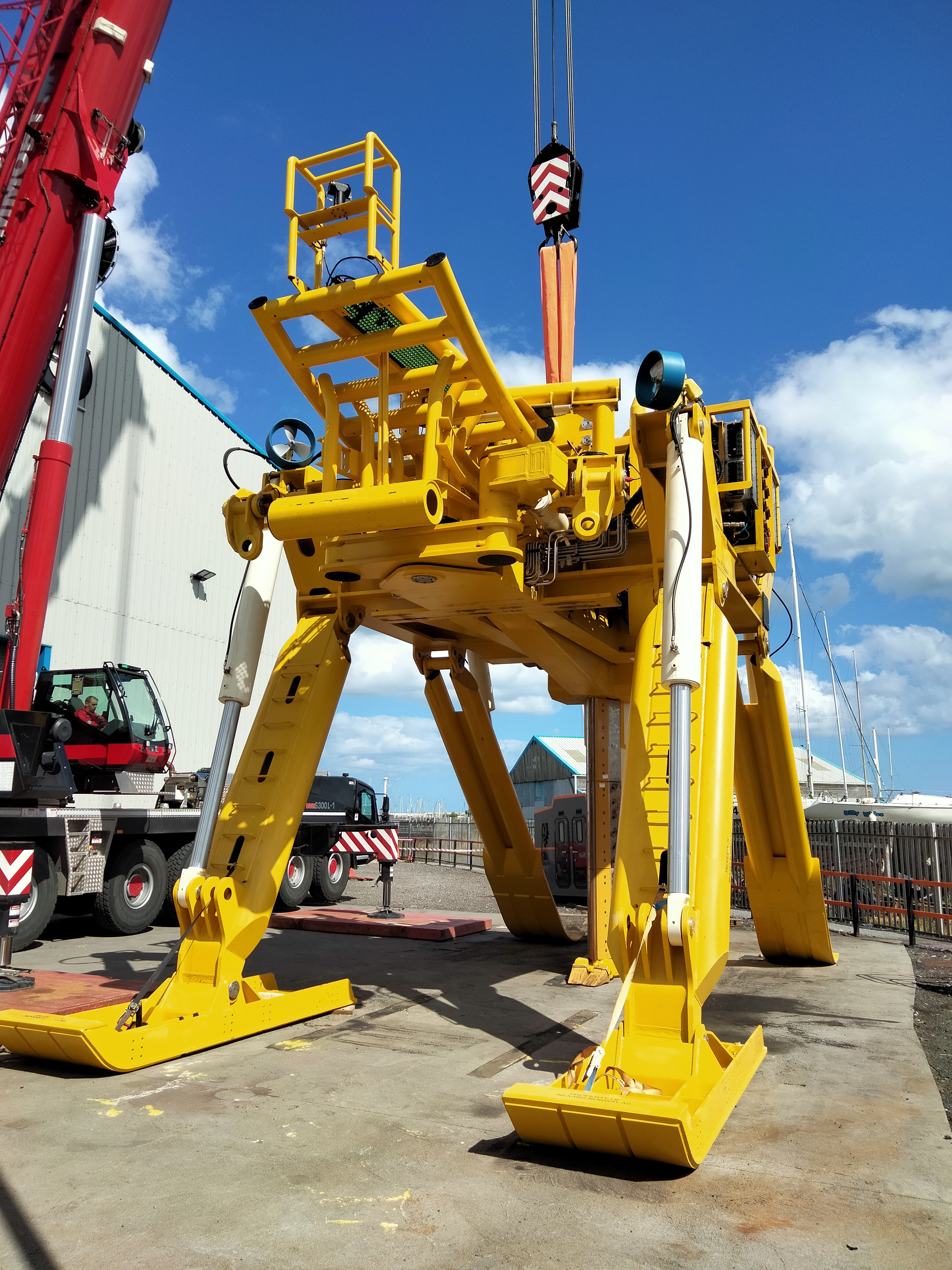

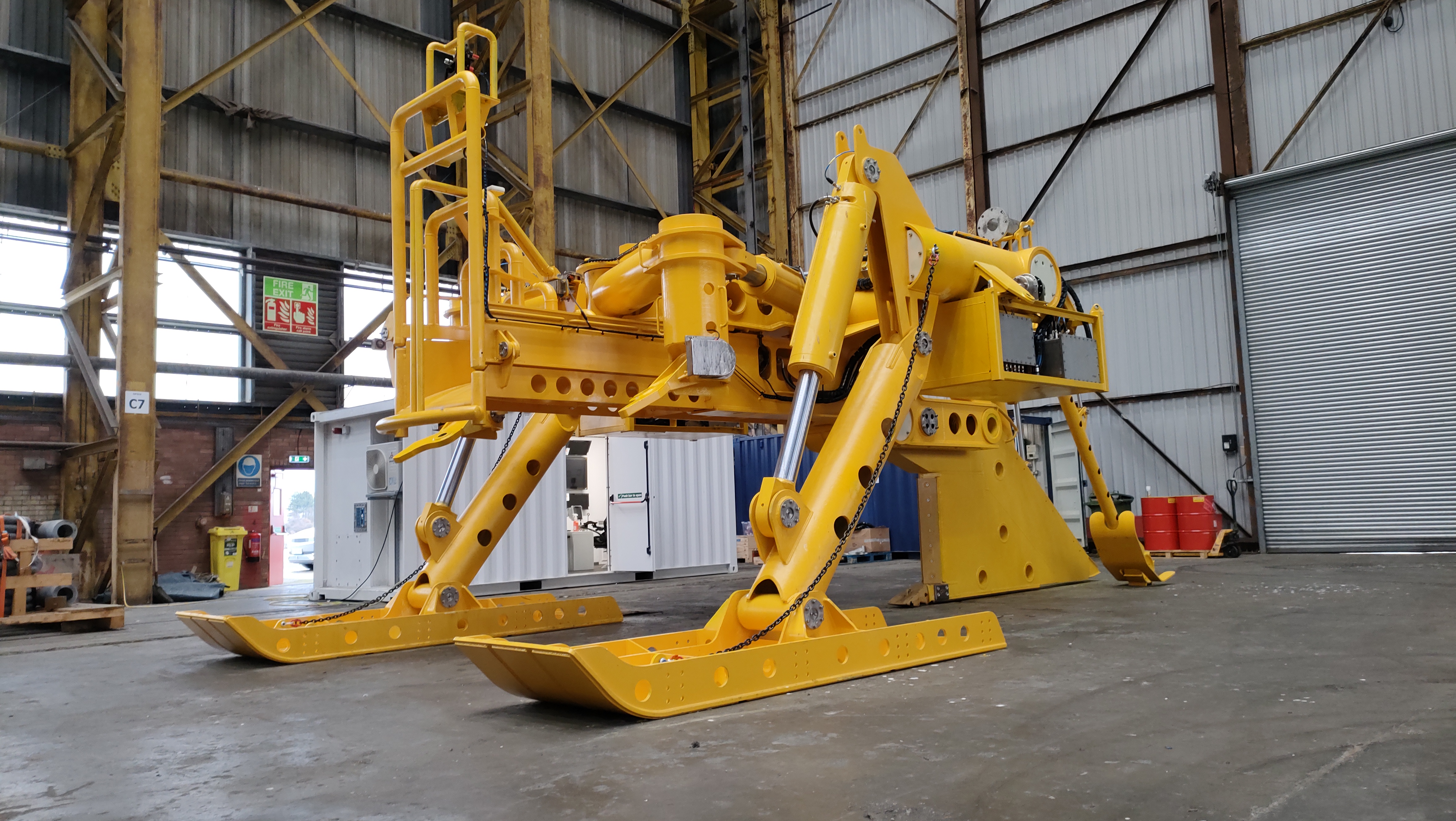

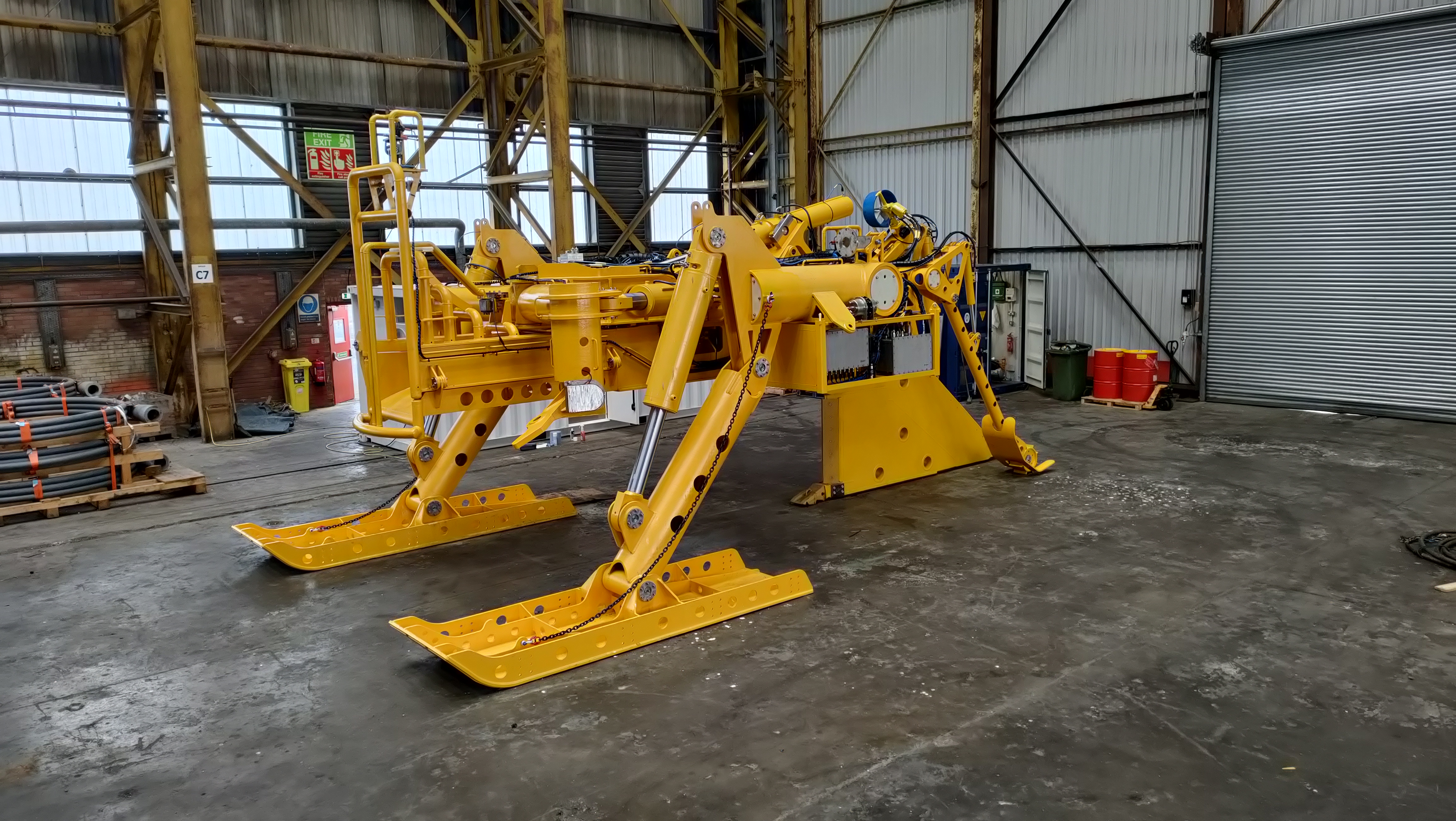

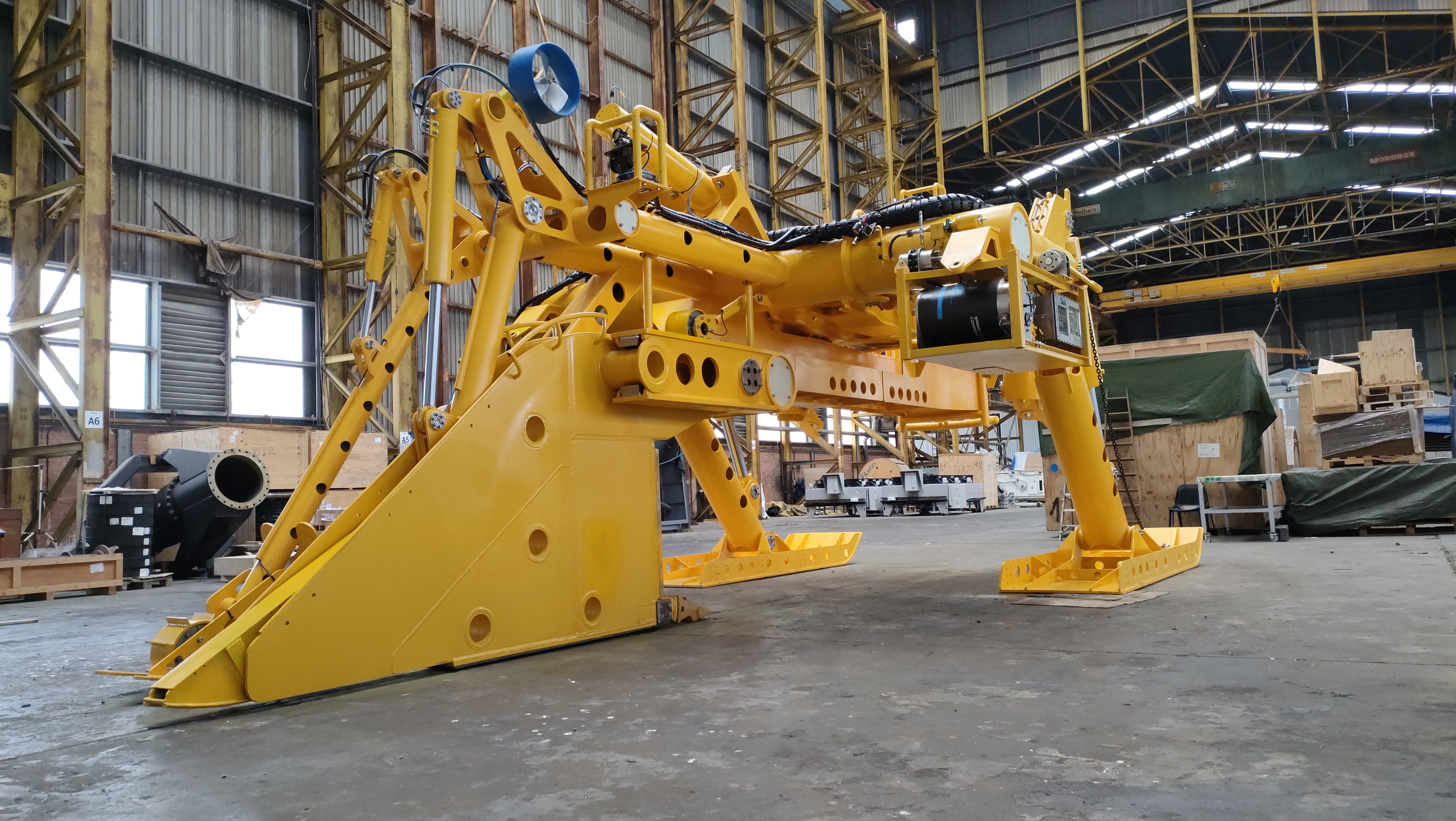

Bespoke Plough Systems
Telecoms or Power Cable Ploughs up to 3.5m
Client driven cable trenching plough
EXAMPLE SYSTEM
- Tow force: 130Te (150Te Peak)
- Trench depth: 0 to 3.5m (replaceable share)
- Product diameter: 20mm to 300mm
- Bend radius: 5m
- Jetting: 250kW
- LARS: Separate tow and lift (bullet launch)

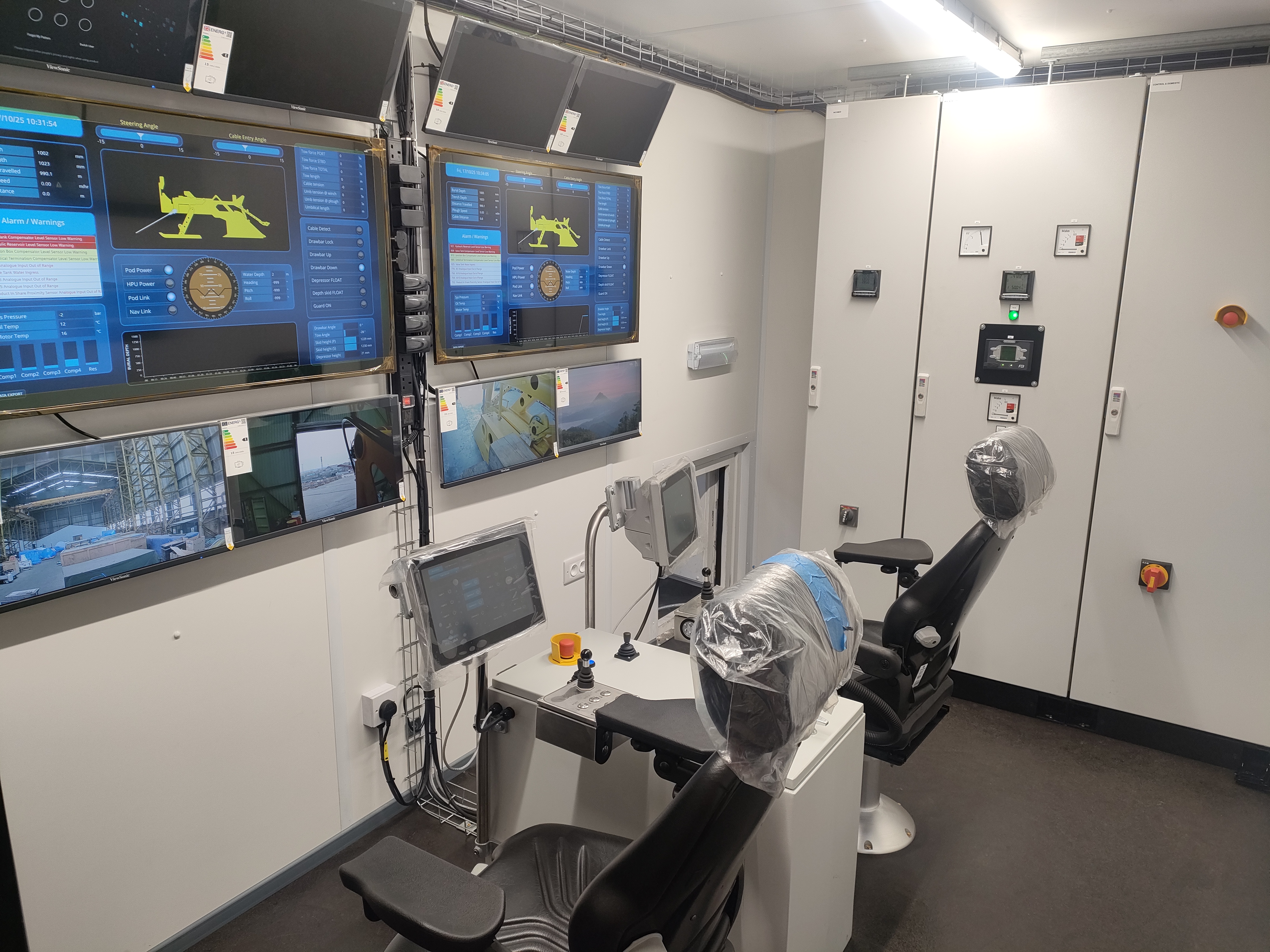

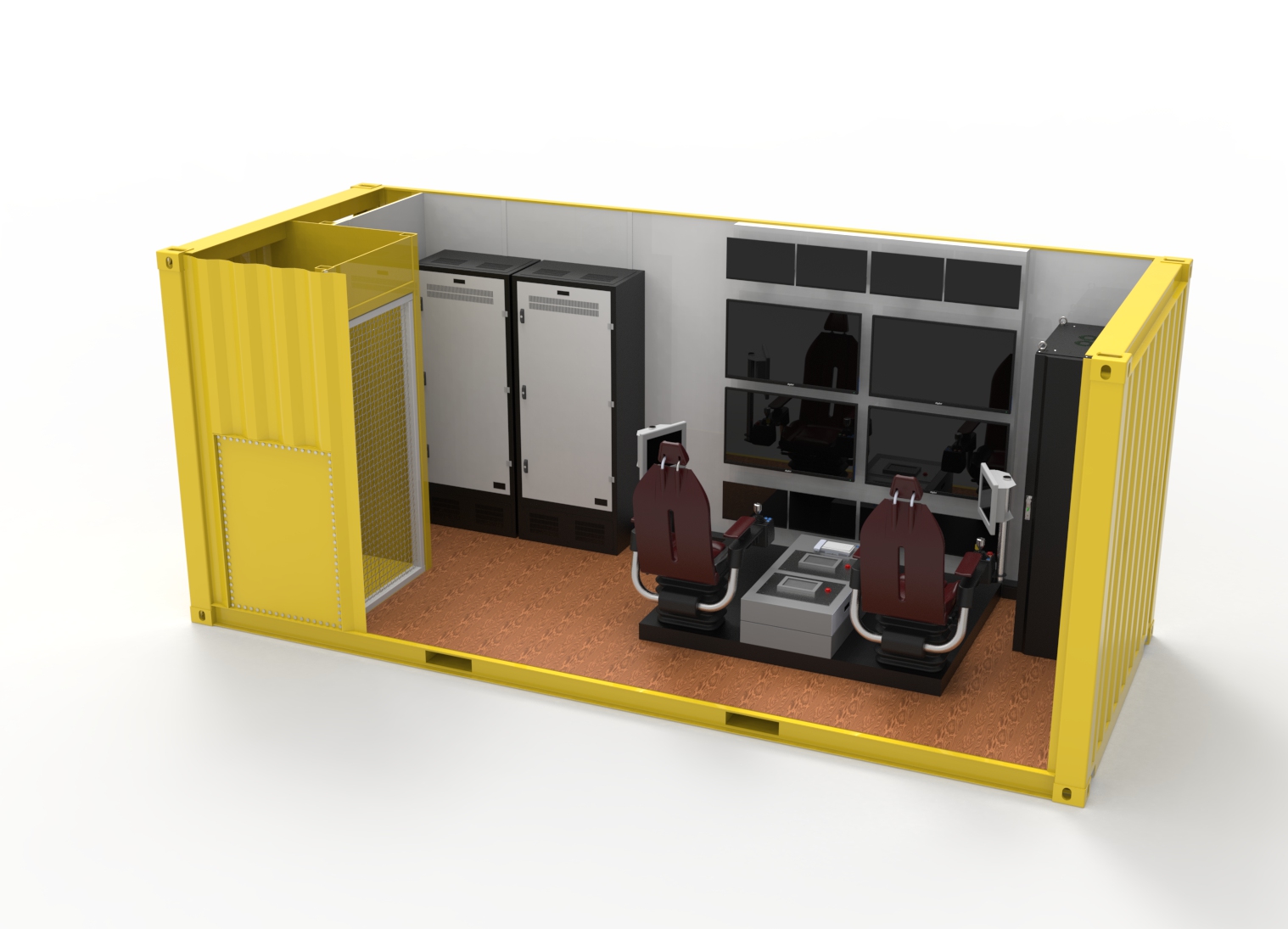

Control and Power Container
ISO Container based Multi-Role System
Industry standard features with modern functionality
- Dimensions: Standard ISO
- Installed power: 10kW – 50kW
- Domestic power: 32A (Externally mounted IP67 plug)

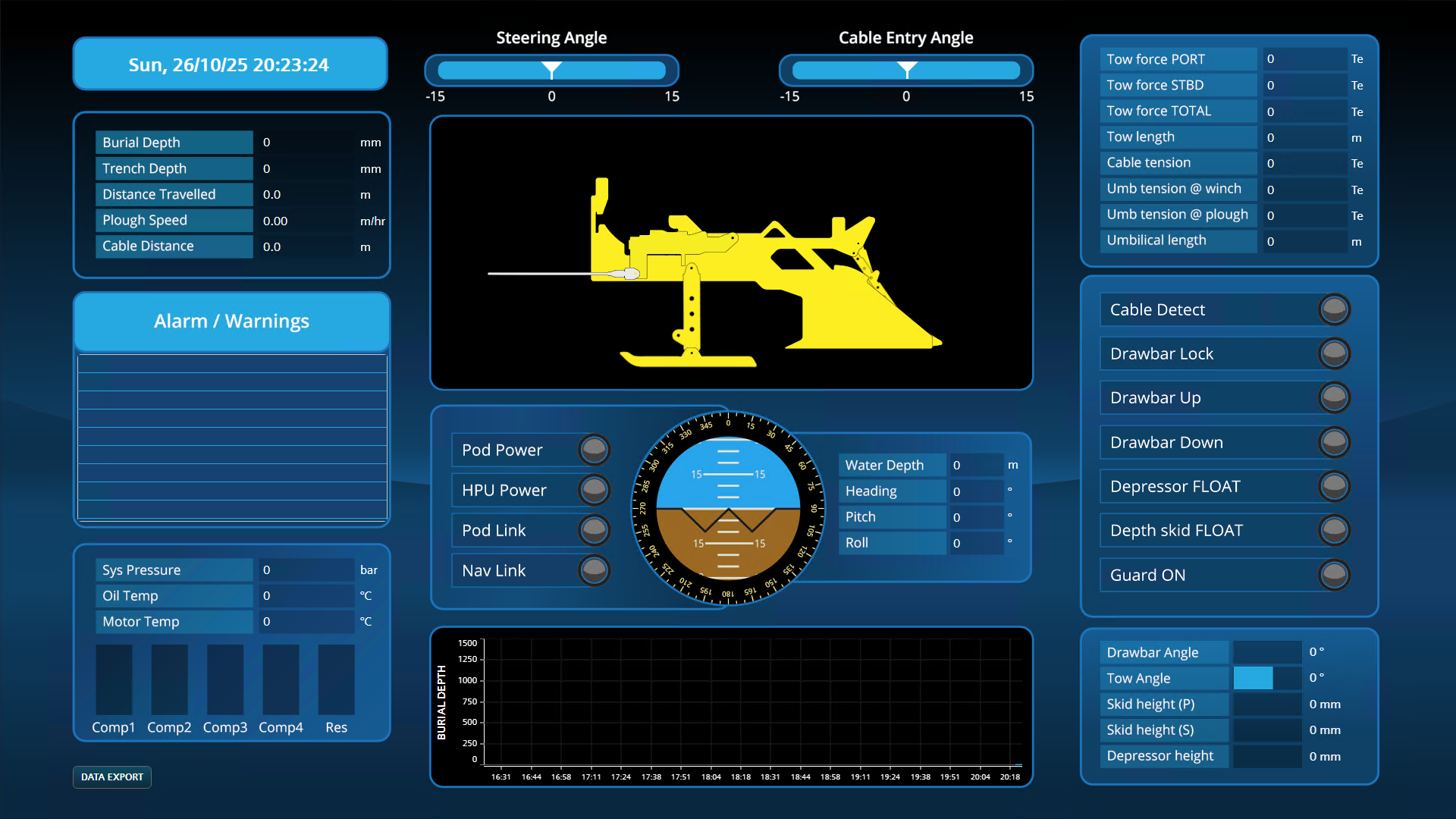

- Control rack: Network control, SCADA PCs, Network encoder, AVI system, KVM system, UPS

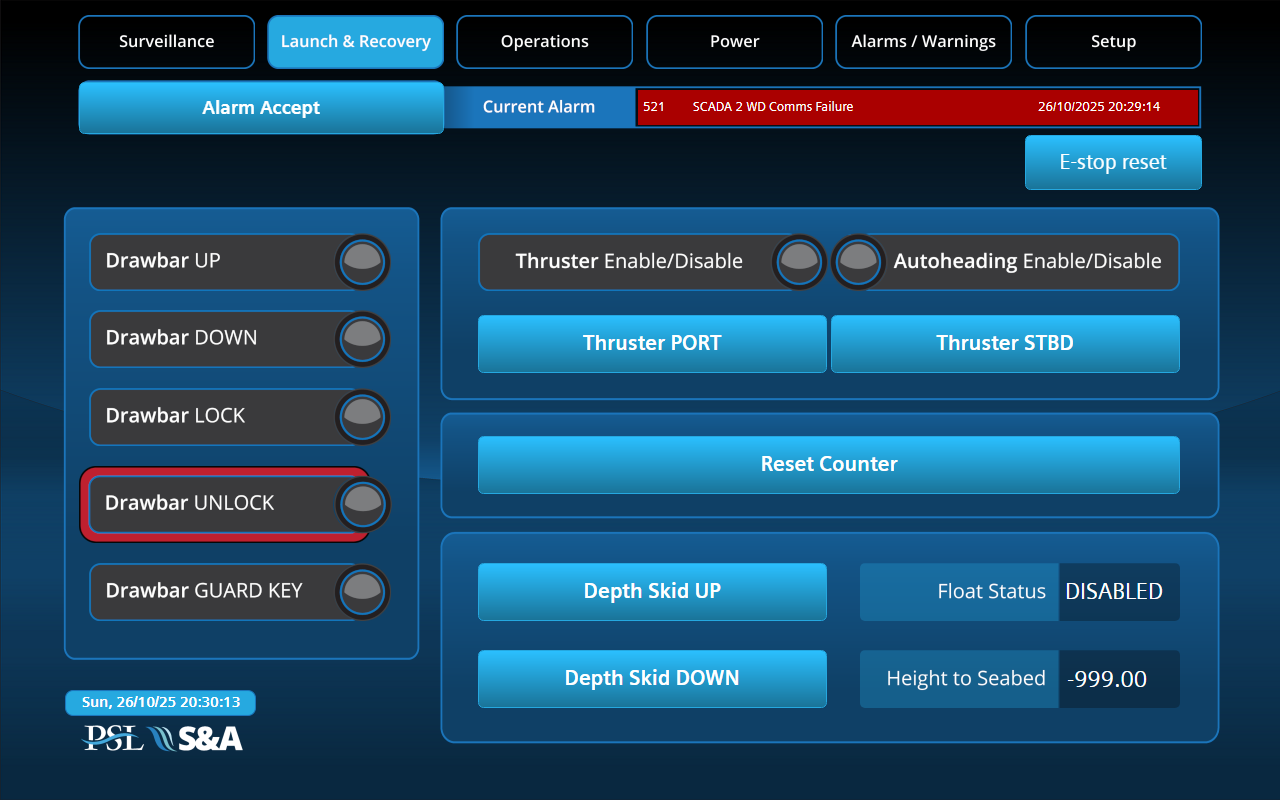

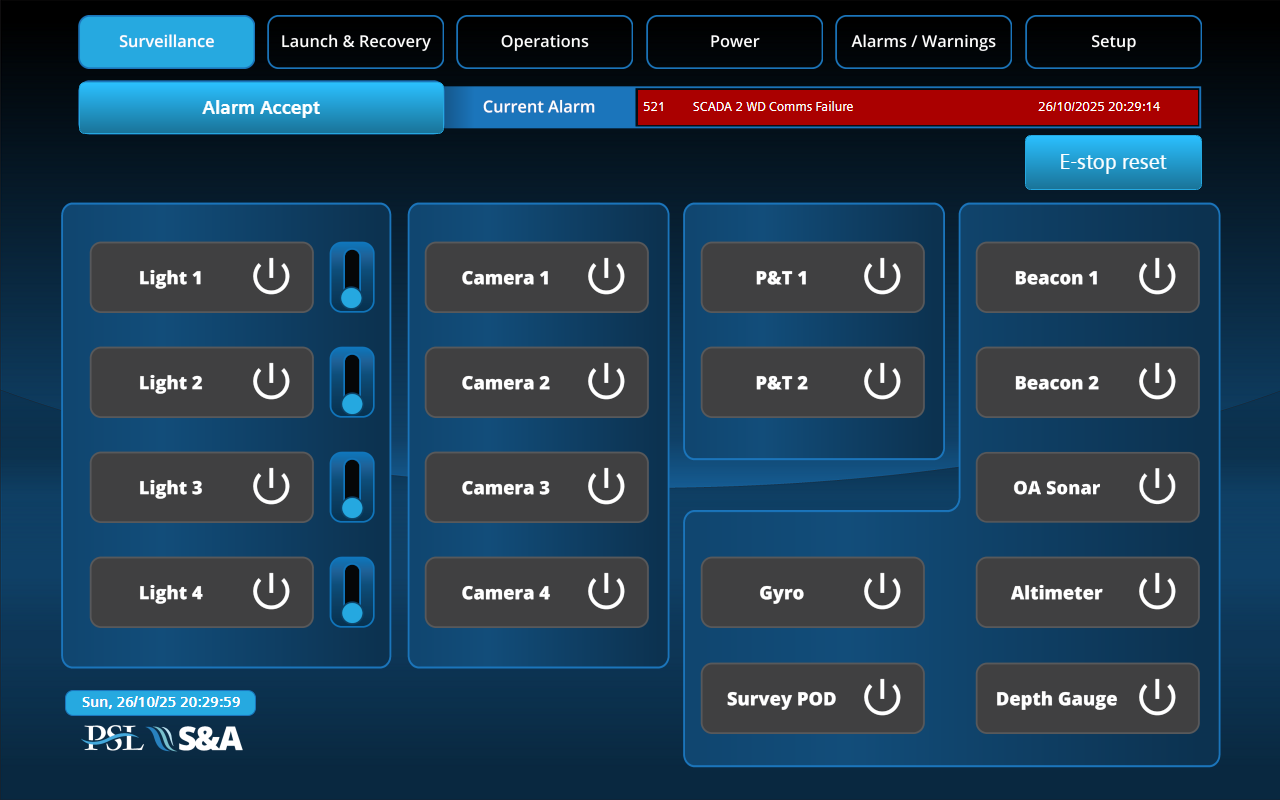

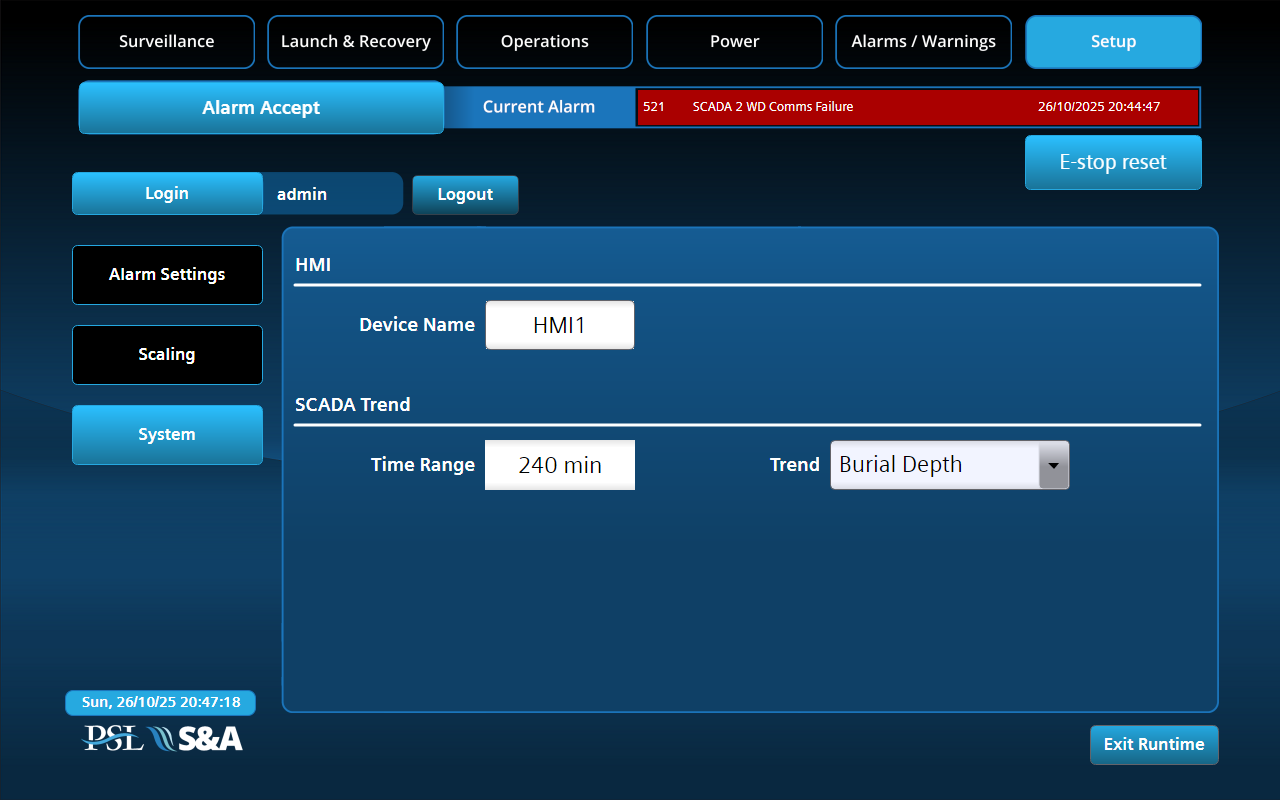

- Operator station: Centre console, twin HMI, dual operator chairs c/w control panels
- Monitors: 8 x 22″, 2 x 44″
- Inclusions: Air conditioning, fire alarm
CMR400
Cable Maintenance ROV 400HP
Industry standard features with modern functionality
- Water depth: 3000m
- Installed power: 300kW/ 400HP
- Trench depth: 0m to 1.5m (2m swords also supplied)
- Bend radius: 2m
- Width control: 400mm
JTR700
Jet Trencher ROV 700HP
Wide chassis trenching system for deep jet trenching
- Water depth: 3000m
- Installed power: 525kW/ 700HP
- Trench depth: 0m to 2.5m (3m swords also supplied)
- Bend radius: 2m
- Width control: 400mm
